Y6 Aluminum Sheet And Stainless Steel Channel Letter Bending Machine For 3D Sign

Place of Origin : China

MOQ : 5 sets

Price : $5,500.00/sets >=5 sets

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2024

Warranty of core components : 1 Year

Core Components : Bearing, Motor, Gear

Material / Metal Processed : Aluminum, Stainless steel, Carbon steel

Warranty : 1 Year

Weight (KG) : 350

Key Selling Points : Multifunctional

Applicable Industries : Other, Advertising Company

Showroom Location : Egypt, United States, Viet Nam, Philippines, Saudi Arabia, Russia, Thailand, UAE, Australia

Product name : Channel Letter Bender Machine

Material width : 10-120mm

Material thickness : 0.4-1.2mm

Processing Material : stainless steel,galvanized plate,flat aluminum

Min.Bending Angle : R6

Control system : 4 Axis Control System

Slotting method : Plane cutter

Bending method : Double-bends alternate bending

Fedding method : Rolling continuous feeding

Power : AC220V,50Hz,2.0Kw

Contact Now

Product Description

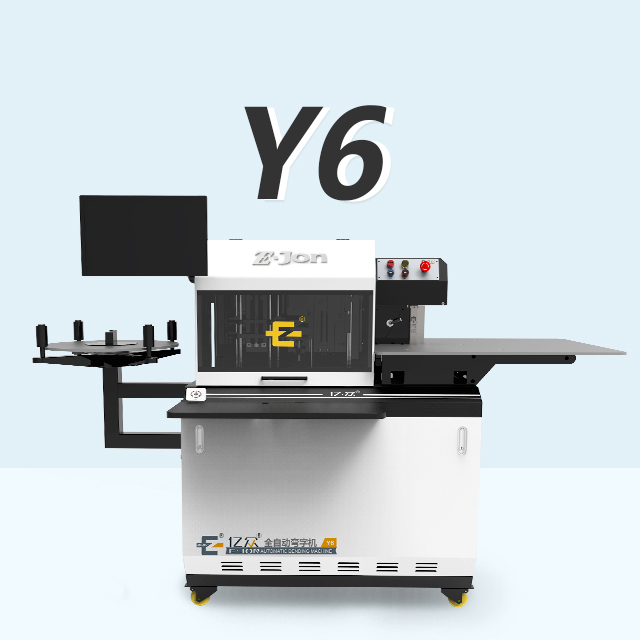

EJON Y6 High Efficiency Aluminum Sheet and Stainless Steel Channel Letter Bending Machine for 3D sign

Y6 Aluminum Sheet And Stainless Steel Channel Letter Bending Machine For 3D Sign

SPECIFICATIONS
Feeding system	Rolling continuous feeding system
Slotting System	Plane cutter
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate
Material Height	Stainless steel,Galvanized steel,Aluminum plate:20~120mm
Material Thickness	0.4~1.2mm
Accuracy	±0.1mm
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V,50Hz,2.0Kw
Control System	4 axis control system (2 axis servo control)

Main Features

1) The feeding support adopts an integral casting structure, which effectively avoids the deformation in the feeding process and ensures the stability of feeding.

2) The bending system adopts structural castings, integral casting, to ensure the stability of high-speed bending.

3) The slotting and bending adopt 750W high-power servo motor which accurate positioning, fast response, stable operation, and effectively improve the system's rapidity and stability.

Detailed Images

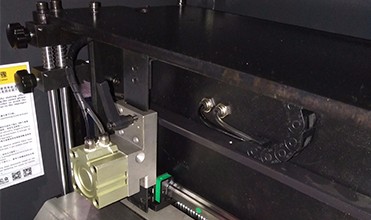

Machine Parts

The casting on Clamping increases the grasping force, meanwhile does not scratch the material

Main Features

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

* Size:1200*720*1480mm

* Weight:400KG

* Packaging details:The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
